title module Lab 01: Manage Microsoft Entra ID Identities Administer Identity

Lab 01 - Manage Microsoft Entra ID Identities

Lab scenario

Your organization is building out a new lab environment for pre-production testing of apps and services. A few engineers are being hired to manage the lab environment, including the virtual machines. In order to allow the engineers to authenticate by using Microsoft Entra ID, you have been tasked with provisioning users and group accounts. To minimize administrative overhead, membership of the groups should be updated automatically based on job titles. You also need to know how to delete users to prevent access after an engineer leaves your organization.

Note: An interactive lab simulation is available that allows you to click through this lab at your own pace. You may find slight differences between the interactive simulation and the hosted lab, but the core concepts and ideas being demonstrated are the same.

Lab requirements

This lab requires access to the Azure portal and the ability to create group accounts.

Estimated timing: 30 minutes

Tasks

In this lab, you will:

• Task 1: Familiarize yourself with the Azure portal
• Task 2: Create a resource group
• Task 3: Familiarize yourself with user accounts and group membership
• Task 4: Create a resource group

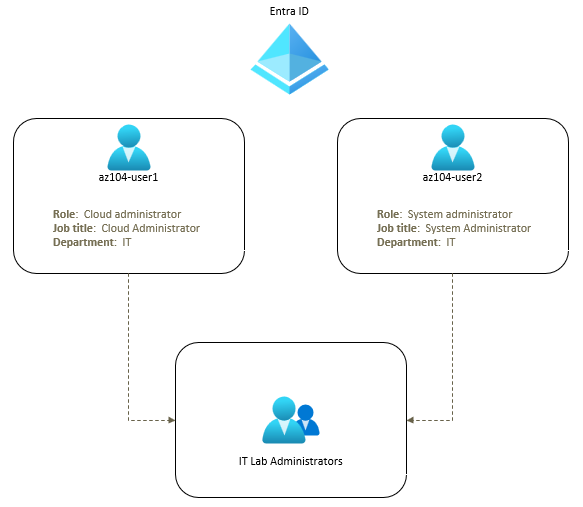

Architecture diagram

Task 1: Familiarize yourself with the Azure portal

In this task, you familiarize yourself with the Azure portal. The Azure portal is a web-based, unified console that provides an alternative to command-line tools. With the Azure portal, you can manage your Azure subscription using a graphical user interface. You can build, manage, and monitor everything from simple web apps to complex cloud deployments in the portal.

1. Sign in to the Azure portal.

2. Begin your tour of the Azure portal, by selecting the top left menu icon.

   • Select Home to view recent services and resources. You can also create favorites.
   • Select Dashboard for a customized view. Dashboards are a focused and organized view of your cloud resources in the Azure portal. Use dashboards as a workspace where you can monitor resources and quickly launch tasks for day-to-day operations.
   • Select All services to view a categorized list of Azure services.

3. You may find it quicker to Search resources, services, and docs using the search box in the top center of the portal. The search box provides autocomplete and suggestions for services or resources. For example, try virt and notice the suggested matches.

4. On the right side of the top menu bar, select the Settings icon. Settings lets you customize the portal appearance, language and region.

5. Lastly, in the top right corner is your user account information.

Task 2: Create a new resource group

In this task, you will create a new resource group. A resource group is a grouping of related resources (such as all the resources for a project, a department, or an application). For each lab in this course you will create a resource group.

1. In the Azure portal, search for and select Resource groups.

2. On the Resource groups blade, click + Create, and specify the following setting:

   Setting	Value
   Subscription name	the name of your Azure subscription
   Resource group name	az104-rg1
   Location	East US

3. Click Review + create and then click Create.

   Note

   : Wait for the resource group to deploy. Use the Notification icon (top right) to track progress of the deployment.

4. Back on the Resource groups blade, refresh the page and verify your new resource group appears in the list of resource groups.

Task 2: Familiarize yourself with user accounts and group membership

In this task, you will familiarize yourself with user account and profiles. You also view group membership.

1. In the Azure portal, search for and select Microsoft Entra ID.

2. In the Manage section, select the Users blade.

3. Select New user from the top menu. Notice the selections for Create new user and Invite external user. We will not be creating new users in this lab.

4. Search for and select your user account.

5. Select the Properties tab and review all the profile information that can be provided for a user account.

6. Review the options available in the Manage section and note that you can identify the roles assigned to the user account as well as the user account's permissions to Azure resources.

7. Select Groups to view your group memberships.

Task 3: Create groups with assigned and dynamic membership

In this task, you will create a group. Groups are used for user accounts or devices. Some groups have members that are statically assigned. Some groups have members that are dynamically assigned. Dynamic groups update automatically based on the properties of user accounts or devices. Static groups require more administrative overhead (administrators have to add and remove members manually).

1. In the Azure portal, search for and select Groups.

2. Select + New group and create a new group.

   Setting	Value
   Group type	Security
   Group name	IT Lab Administrators
   Group description	Administrators that manage the IT lab
   Membership type	Assigned

   Note

   : Your Membership type drop-down list might be grayed out. This is where you can switch from an assigned group to a dynamic group if you have an Entra ID Premium P1 or P2 license.



3. Select No members selected.

4. From the Add members blade, search for IT Cloud Administrators, click the checkbox to the left of it. Next, search for IT System Administrators groups, click the checkbox to the left of it and then click Select. Back on the New Group blade, click Create.



Task 4: Configure the Cloud Shell

In this task, you work with the Azure Cloud Shell. Azure Cloud Shell is an interactive, authenticated, browser-accessible terminal for managing Azure resources. It provides the flexibility of choosing the shell experience that best suits the way you work, either Bash or PowerShell. In this task, we will use PowerShell.

1. Select the Cloud Shell icon in the top right of the Azure Portal.



2. When prompted to select either Bash or PowerShell, select PowerShell. Bash will be used in the next task.

3. On the You have no storage mounted screen select Show advanced settings and provide the required information. When completed select Create storage.

   Settings	Values
   Resource Group	Create new resource group
   Storage account (Create a new account a use a globally unique name (ex: cloudshellstoragemystorage))	cloudshellxxxxxxx
   File share (create new)	shellstorage

   Note: If you are working in a hosted lab environment, you will need to configure cloud shell storage each time a new lab environement is created.

   Note: When working in the Cloud Shell you are automatically connected to Azure.

Create a group using PowerShell

1. Continue working in the Cloud Shell. At anytime use cls to clear the command window.

2. Get a list of resource groups.

   Get-AzResourceGroup


3. Get a list of group accounts.

   Get-Az


4. Create a new resource group.

5. Create a new group account.

Review

Congratulations! You created and configured user accounts, created a group, created a resource group, assigned a role to a user, and deleted a user account.

1. Create a new user with the following settings (leave others with their defaults):

   Setting	Value
   User principal name	az104-user1
   Display name	az104-user1
   Auto-generate password	de-select
   Initial password	Provide a secure password
   Job title (Properties tab)	Cloud Administrator
   Department (Properties tab)	IT
   Usage location (Properties tab)	United States

   Note

   : Copy to clipboard the full User Principal Name (user name plus domain). You will need it later in this task.



2. In the Manage section, click Assigned roles, then click + Add assignment button and assign the User administrator role to az104-user1.

   Note

   : You also have the option of assigning roles when provisioning a new user.

3. Open an InPrivate browser window and sign in to the Azure portal using the newly created user account. When prompted to update the password, change the password to a secure password of your choosing.

   Note

   : Rather than typing the user name (including the domain name), you can paste the content of Clipboard.

4. In the InPrivate browser window, in the Azure portal, search for and select Microsoft Entra ID.

   Note

   : While this user account can access the tenant, it does not have any access to Azure resources. This is expected, since such access would need to be granted explicitly by using Azure Role-Based Access Control.

5. In the InPrivate browser window, on the Microsoft Entra ID blade, scroll down to the Manage section, click User settings, and note that you do not have permissions to modify any configuration options.

6. In the InPrivate browser window, on the Microsoft Entra ID blade, in the Manage section, click Users, and then click + New user.

7. Create a new user with the following settings (leave others with their defaults):

   Setting	Value
   User principal name	az104-user2
   Display name	az104-user2
   Auto-generate password	de-select
   Initial password	Provide a secure password
   Job title	System Administrator
   Department	IT
   Usage location	United States

8. Sign out as the az104-user1 user from the Azure portal and close the InPrivate browser window.
