title module Lab 05: Implement Intersite Connectivity Administer Intersite Connectivity

Lab 05 - Implement Intersite Connectivity

Lab introduction

In this lab you will explore communication between virtual networks. You will implement virtual network peering and run remote commands to test connections.

This lab requires an Azure subscription. Your subscription type may affect the availability of features in this lab. You may change the region, but the steps are written using East US.

Estimated time: 30 minutes

Lab scenario

Your organization segments core IT apps and services (such as DNS and security services) from other parts of the business, including your manufacturing department. However, in some scenarios, apps and services in the core area need to communicate with apps and services in the manufacturing area. In this lab, you configure connectivity between the segmented areas. This is a common scenario for separating production from development or separating one subsidiary from another.

Interactive lab simulations

There are several interactive lab simulations that you might find useful for this topic. The simulation lets you to click through a similar scenario at your own pace. There are differences between the interactive simulation and this lab, but many of the core concepts are the same. An Azure subscription is not required.

• Connect two Azure virtual networks using global virtual network peering. Test the connection between two virtual machines in different virtual networks. Create a virtual network peering and retest.
• Implement intersite connectivity. Run a template to create a virtual network infrastructure with several virtual machines. Configure virtual network peerings and test the connections.

Architecture diagram

Tasks

• Task 1: Create a core services virtual machine and virtual network.
• Task 2: Create a manufacturing services virtual machine and virtual network.
• Task 3: Test the connection between the virtual machines.
• Task 4: Create VNet peerings between the virtual networks.
• Task 5: Retest the connection between the virtual machines.

Task 1: Create a core services virtual machine and virtual network

In this task, we create a core services virtual network with a virtual machine.

1. Sign in to the Azure portal - https://portal.azure.com.

2. Search for and select Virtual Machines.

3. From the virtual machines page, select Create then select Azure Virtual Machine.

4. On the Basics tab, use the following information to complete the form, and then select Next: Disks >. For any setting not specified, leave the default value.

   Setting	Value
   Subscription	your subscription
   Resource group	az104-rg5 (If necessary, select Create new. Use this group for all your lab resources.)
   Virtual machine name	CoreServicesVM
   Region	East US
   Availability options	No infrastructure redundancy required
   Image	Windows Server 2019 Datacenter: x64 Gen2
   Size	Standard_DS2_v3
   Username	localadmin
   Password	Provide a complex password



5. On the Disks tab, set the OS disk type to Standard HDD, and then select Next: Networking >.

6. On the Networking tab, for Virtual network, select Create new.

7. Use the following information to configure the virtual network, and then select Ok. If necessary, remove or replace the existing address range.

   Setting	Value
   Name	CoreServicesVNet (Create new)
   Address space	10.0.0.0/16
   Subnet Name	Core
   Subnet address range	10.0.0.0/24

8. Select the Monitoring tab. For Boot Diagnostics, select Disable.

9. Select Review + Create, and then select Create.

10. You do not need to wait for the resources to be created. Continue on to the next task.

    Note: Did you notice in this task you created the virtual network when you created the virtual machine?

Task 2: Create a manufacturing services virtual machine and virtual network

In this task, we create a manufacturing services virtual network with a virtual machine.

1. From the Azure portal, search for and navigate to Virtual Machines.

2. From the virtual machines page, select Create then select Azure Virtual Machine.

3. On the Basics tab, use the following information to complete the form, and then select Next: Disks >. For any setting not specified, leave the default value.

   Setting	Value
   Subscription	your subscription
   Resource group	az104-rg5
   Virtual machine name	ManufacturingVM
   Region	East US
   Availability options	No infrastructure redundancy required
   Image	Windows Server 2019 Datacenter: x64 Gen2
   Size	Standard_DS2_v3
   Username	localadmin
   Password	Provide a complex password

4. On the Disks tab, set the OS disk type to Standard HDD, and then select Next: Networking >.

5. On the Networking tab, for Virtual network, select Create new.

6. Use the following information to configure the virtual network, and then select Ok. If necessary, remove or replace the existing address range.

   Setting	Value
   Name	ManufacturingVNet
   Address space	172.16.0.0/16
   Subnet Name	Manufacturing
   Subnet address range	172.16.0.0/24

7. Select the Monitoring tab. For Boot Diagnostics, select Disable.

8. Select Review + Create, and then select Create.

Task 3: Test the connection between the virtual machines

In this task, you test the connection between the virtual machines in different virtual networks.

Verify the private IP address of the CoreServicesVM

1. From the Azure portal, search for and select the CoreServicesVM virtual machine.

2. On the Overview blade, in the Networking section, record the Private IP address of the machine. You need this information to test the connection.

Test the connection to the CoreServicesVM from the ManufacturingVM.

1. In the portal, select for and select the ManufacturingVM virtual machine.

2. In the Operations section, select the Run command blade.

3. Select RunPowerShellScript and run the Test-NetConnection command. Be sure to use the private IP address of the CoreServicesVM.

    Test-NetConnection <CoreServicesVM private IP address> -port 3389


4. It may take a couple of minutes for the script to run. The top of the page shows an informational message Script execution in progress.

5. The test connection should fail. Virtual machines in different virtual networks should, by default, not be able to communicate.



Task 4: Create VNet peerings between the virtual networks

In this task, you create virtual network peerings to enable communications between VNets.

1. In the Azure portal, select Virtual Networks, and then select CoreServicesVnet.

2. In CoreServicesVnet, under Settings, select Peerings.

3. On CoreServicesVnet | Peerings, select + Add.

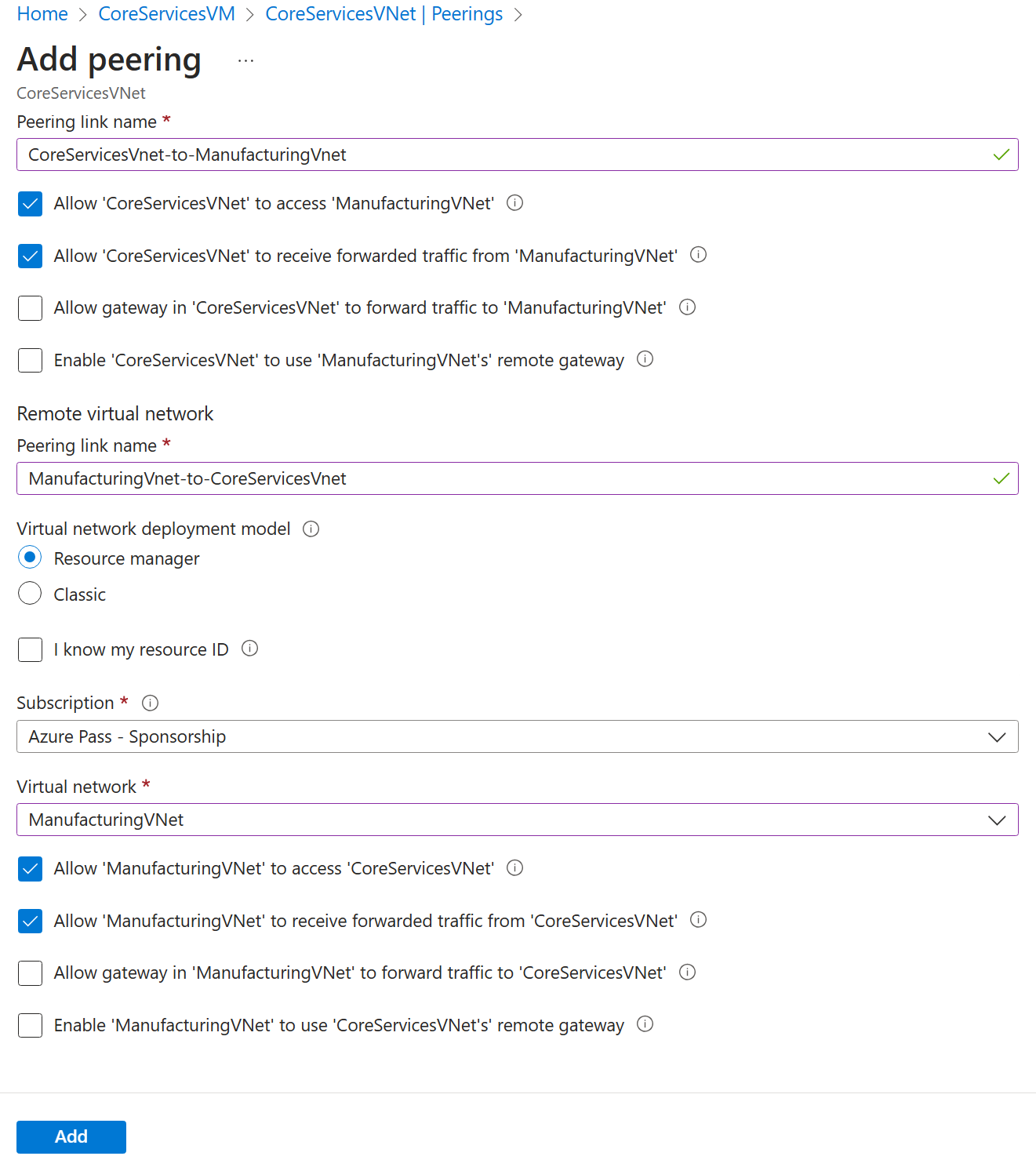

4. Use the information in the following table to create the peering.

   Section	Option	Value
   This virtual network
   	Peering link name	CoreServicesVnet-to-ManufacturingVnet
   	Allow Allow CoreServicesVNet to access the peered virtual network	selected (default)
   	Allow CoreServicesVNet to receive forwarded traffic from the peered virtual network	selected
   	Enable CoreServicesVNet to use the peered virtual networks' remote gateway	Not selected (default)
   Remote virtual network
   	Peering link name	ManufacturingVnet-to-CoreServicesVnet
   	Virtual network deployment model	Resource manager
   	I know my resource ID	Not selected
   	Subscription	your subscription
   	Virtual network	ManufacturingVnet
   	Allow ManufacturingVNet to access CoreServicesVNet	selected (default)
   	Allow ManufacturingVNet to receive forwarded traffic from CoreServicesVNet	selected
   	Enable ManufacturingVNet to use CoreServicesVNet's remote gateway	Not selected (default)

5. Review your settings and select Add.



6. In CoreServicesVnet | Peerings, verify that the CoreServicesVnet-to-ManufacturingVnet peering is listed. Refresh the page to ensure the Peering status is Connected.

7. Switch to the ManufacturingVnet and verify the ManufacturingVnet-to-CoreServicesVnet peering is listed. Ensure the Peering status is Connected.

Task 5: Test the connection between the VMs

In this task, you verify the virtual machines in different virtual networks can communicate with each other.

1. Search for and select the ManufacturingVM.

2. In the Operations section, select the Run command blade.

3. Select RunPowerShellScript and add the Test-NetConnection command. Be sure to use the private IP address of the CoreServicesVM.

   Test-NetConnection <CoreServicesVM private IP address> -port 3389


4. It may take a couple of minutes for the script to run. The top of the page shows an informational icon Script execution in progress.

5. The test connection should succeed.

Review the main points of the lab

Congratulations on completing the lab. Here are the main takeaways for this lab.

• By default, resources in different virtual networks cannot communicate.
• Virtual network peering enables you to seamlessly connect two or more virtual networks in Azure.
• Peered virtual networks appear as one for connectivity purposes.
• The traffic between virtual machines in peered virtual networks uses the Microsoft backbone infrastructure.

Cleanup your resources

If you are working with your own subscription take a minute to delete the lab resources. This will ensure resources are freed up and cost is minimized. The easiest way to delete the lab resources is to delete the lab resource group.

• In the Azure portal, select the resource group, select Delete the resource group, Enter resource group name, and then click Delete.
• Using Azure PowerShell, Remove-AzResourceGroup -Name resourceGroupName.
• Using the CLI, az group delete --name resourceGroupName.
